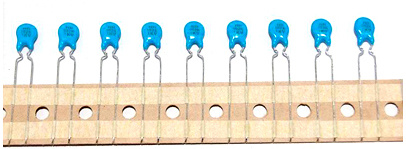

HR series high voltage ceramic capacitor
| Range of working temperature | -25℃ to+85℃ |
| Capacitance | Within the Specified Tolerance at 1KHz±20%，1.0±0.2Vrms |
| Capacitance tolerance | K：±10%, M：±20% |
| Loss (DF) | DF≤0.2% at 1KHz±20%，1.0±0.2Vrms |
| Rated voltage( U R ) | 1KV 、2KV |
| Withstand voltage | 2UR for 2 to 5S （Charge /Discharge current≤50mA） |
| Insulation resistance (IR) | 10000MΩ min at 500VDC and 1 minute electrification |
Capacitance specification
|
Rated voltage |
Capacitance (pF) |
Dimensions（mm) |
||||
|
Temperature characteristics |
||||||
|
DC |
SL |
Y5R (R) |
D |
Tmax |
F ±1.0 |
d ±0.05 |
|
1KV |
10 ～ 68 |
150 ～ 330 |
05 |
4.0 |
5.0 or 7.5 |
0.6 |
|
82 ～ 100 |
470 ～ 560 |
06 |
||||
|
150 ～ 180 |
680 |
07 |
||||
|
220 |
820 ～ 1000 |
08 |
||||
|
270 |
1200 |
09 |
||||
|
330 ～ 390 |
1500 ～ 1800 |
10 |
||||
|
470 |
2200 |
12 |
||||
|
2KV |
10 ～ 47 |
100 ～ 330 |
06 |
5.0 |
5.0 or 7.5 |
0.6 |
|
56 ～ 100 |
390 ～ 560 |
07 |
||||
|
120 ～ 150 |
680 |
08 |
||||
|
180 |
820 |
09 |
||||
|
|
1000 |
10 |
||||
|
220 ～ 270 |
1500 |
12 |
||||
|
330 |
1800 ～ 2200 |
14 |
||||
|
470 ～ 560 |
3300 |
16 |
||||
